The Crawl Space Recovery Forensic 6-Step Restoration Workflow

When water enters your crawl space, proper mitigation requires more than just pumping out standing water. Water deeply saturates structural lumber, destroys subfloor insulation, and triggers rapid mold colonization within 24 to 48 hours.

At Crawl Space Recovery, our entire restoration methodology adheres strictly to ANSI/IICRC S500 (Standard for Professional Water Damage Restoration) and ANSI/IICRC S520 (Standard for Professional Mold Remediation). Every emergency response follows our standardized 6-step forensic workflow to ensure complete structural dry-out and air quality protection.

Call Dispatch: +1 (858) 422-5156

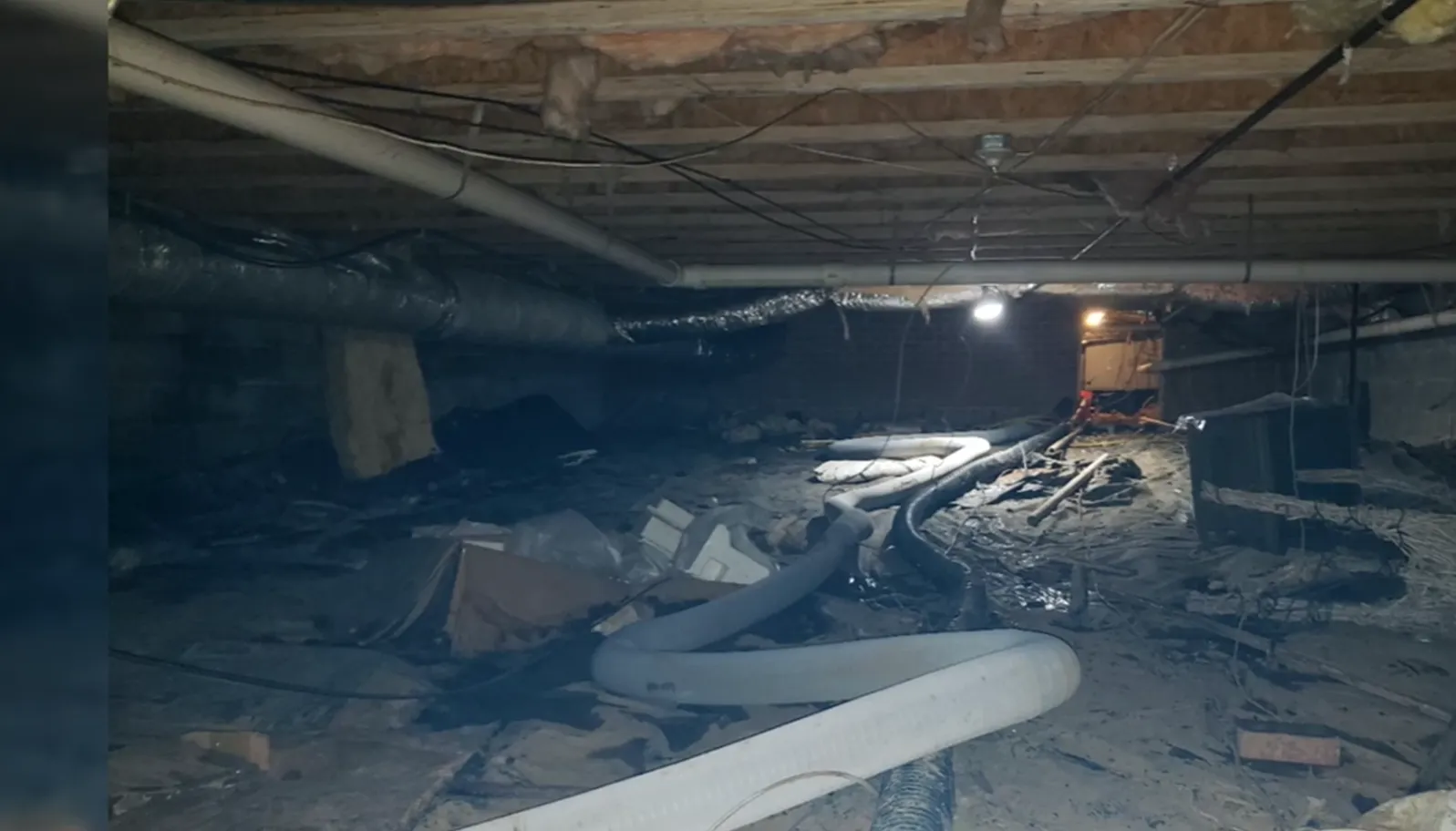

crawl space water damage restoration process

Forensic Confined Space Restorations

Certified Psychrometric Structural Drying

Step 1 - First 60 Minutes

Step 1: Emergency Inspection, Hazard Assessment, and Moisture Mapping

Call Now. We Answer 24/7. Upon arrival, our certified technicians conduct a comprehensive safety and diagnostic assessment:

✓
Life-Safety Hazard Inspection: We test for submerged electrical circuits, combustible gas leaks, structural foundation movement, and raw sewage contamination before entering the confined space.
✓
FLIR Thermal Imaging: Infrared thermography reveals hidden water migration tracks behind foundation walls and within subfloor joist cavities.
✓
Baseline Psychrometric Moisture Mapping: We measure and document initial Wood Moisture Equivalent (% WME) across sill plates, floor joists, and subfloor sheathing, along with ambient relative humidity (RH%) and Specific Humidity (Grains Per Pound / GPP).

Step 2 - Water Extraction

Step 2: High-Volume Standing Water and Mud Slurry Extraction

Standing water must be removed immediately to relieve hydrostatic pressure and stop continuous vapor absorption into framing lumber:

✓
Industrial Submersible Trash Pumps: For standing water depths from 2 inches to 3+ feet, we deploy 2-inch and 3-inch submersible pumps discharging up to 18,000 gallons per hour.
✓
Truck-Mounted Vacuum Slurry Extraction: Stagnant sediment, contaminated silt, and mud slurry are extracted using continuous deep-vacuum suction down to the soil grade.
✓
Perimeter Trench Clearing: Temporary collection pits are established to draw residual groundwater away from foundation footings.

Step 3 - Material Strip-Out

Step 3: Contaminated Material and Saturated Insulation Strip-Out

Saturated building materials trap moisture against wood joists and cannot be salvaged:

✓
Saturated Fiberglass Removal: Saturated batt insulation acting as a moisture reservoir is stripped, double-bagged, and safely removed from the property.
✓
Ruined Vapor Barrier Disposal: Degraded, mud-covered, or contaminated poly sheeting is removed to expose the soil bed for proper sanitization.
✓
Structural Debris Clearing: Organic matter, rotting wood fragments, and construction debris harboring bacteria are cleared out completely.

Step 4 - Biocide & Sanitation

Step 4: EPA-Registered Antimicrobial Bio-Wash and Mold Blast

To neutralize active mold spores, bacteria, and sewage pathogens:

✓
Hospital-Grade Biocide Application: All exposed structural framing, subfloor decking, and foundation walls are treated with EPA-registered botanical or quaternary antimicrobial agents.
✓
Wood Surface Decontamination: Heavy surface fungal growth is remediated using mechanical wire-brushing or HEPA-filtered vacuum abrasion.
✓
Airborne Containment: Commercial HEPA 500 air scrubbers operate continuously under negative air pressure, capturing 99.97% of airborne spores down to 0.3 microns to protect indoor living areas.

Step 5 - Psychrometric Drying

Step 5: Industrial LGR Dehumidification and Structural Drying

Drying structural wood joists requires the application of psychrometric science:

✓
Low Grain Refrigerant (LGR) Dehumidifiers: Commercial LGR units extract bound moisture from wood framing even in cool, damp crawl space environments down to 33 GPP.
✓
High-Velocity Axial Air Movers: Commercial air movers producing 3,000+ CFM break the boundary layer of saturated air clinging to joists, accelerating moisture evaporation.
✓
Daily Psychrometric Logs: Technicians visit the property daily to measure GPP reduction, temperature, RH%, and pin-probe % WME until structural framing drops below our guaranteed target of under 16% WME.

Step 6 - Certification & Relining

Step 6: Post-Dry Certification and Heavy-Duty Barrier Relining

Once structural dry-out is scientifically verified:

✓
Official Certificate of Structural Dry-Out: We issue complete documentation, including initial and final thermal photos, moisture logs, and Xactimate line-item invoices for your insurance carrier.
✓
Commercial Vapor Barrier Installation: We install a fresh, heavy-duty 12-mil, 16-mil, or 20-mil multi-layer reinforced polyolefin liner with taped seams and mechanical wall fastenings.
✓
Final Walkthrough: Technicians review the completed restoration with you to ensure complete satisfaction.
